EOS 60 Hybrid – Advanced

The thermally broken opening system EOS 60 Hybrid was designed for the construction of energy-efficient aluminum frames (doors – windows) and primarily for the replacement of opening frames (see more about aluminum frames Europa). The EOS 60 was designed with straight (rectangular sections) to increase natural light and meets all modern energy requirements (KENAK – Building Energy Performance Regulation), thanks to its high thermal insulation coefficient (thermal transmittance coefficient) of Uf = 2.29 W/m²K . The E 60 thermally broken opening system is available in 3 forms

EOS 60 Hybrid
EOS-60 Advanced
EOS 60 Hybrid with hidden sash

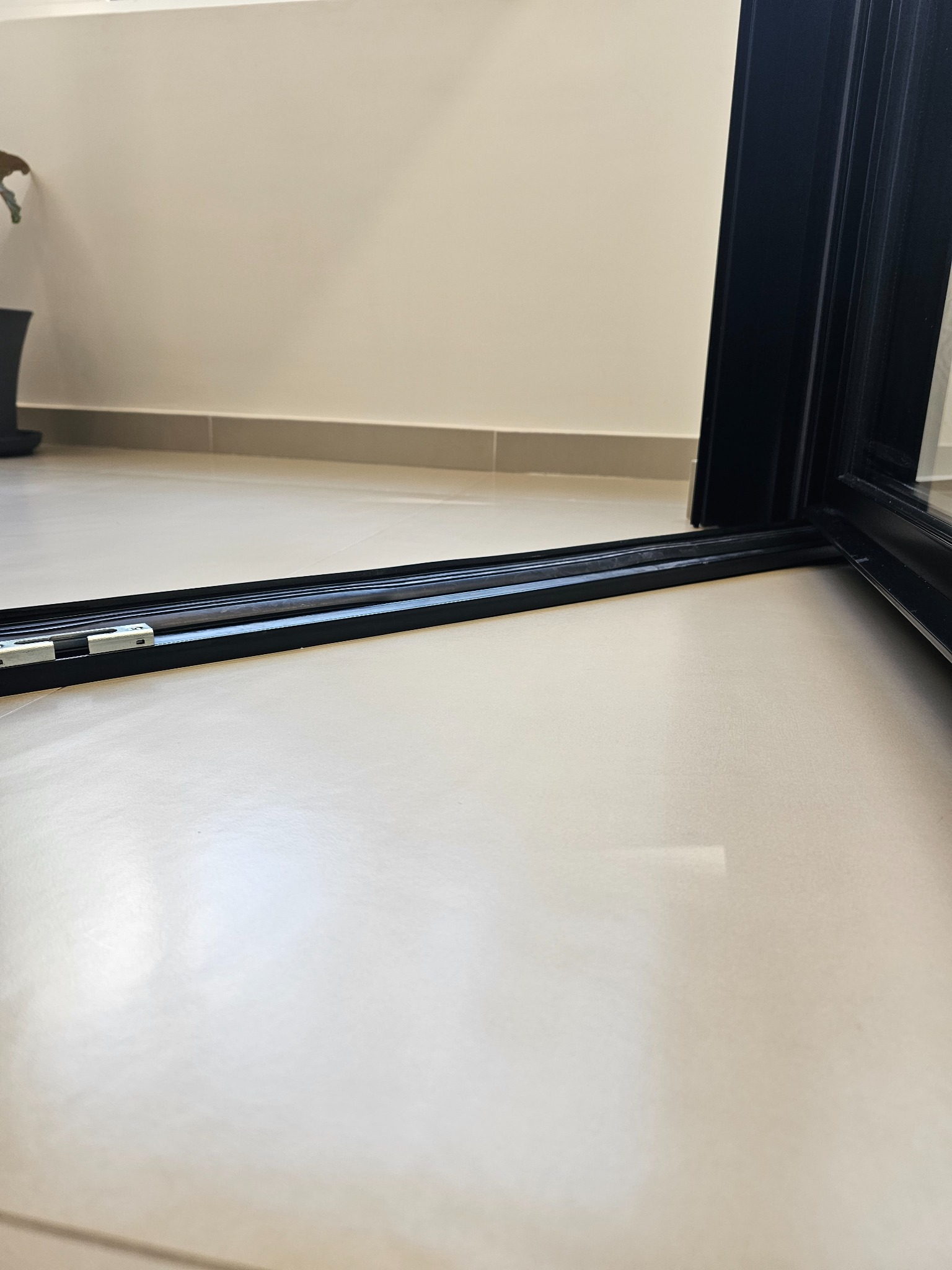

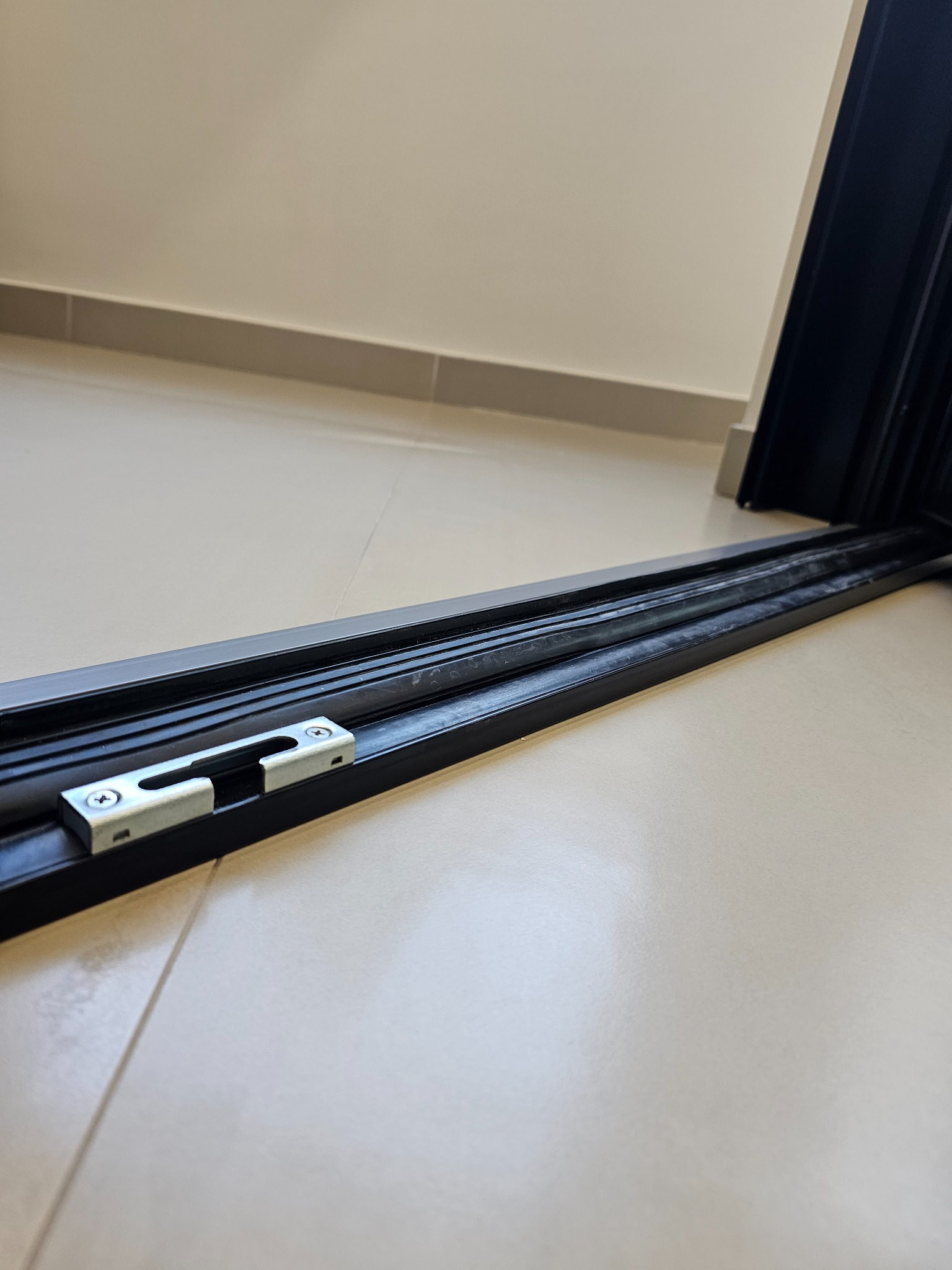

The series offers a plethora of solutions (16mm – 24mm thermal break polyamides, addition of thermal insulation bars – EOS 60 Advanced, hidden sash that significantly reduces the visible surface of the frame), covering even the highest demands. With the E-60 system, we can construct Europa opening balcony doors with a low threshold (0.9 cm high) for unobstructed movement without barriers.

EOS 60 Advanced

The EOS 60 Advanced is created by the addition of special thermal insulation bars (additional insulation compared to the EOS 60 Hybrid) within the system’s polyamides (frames and sashes). With the addition of thermal insulation bars, the EOS 60 Advanced increases its thermal and sound insulation properties, making it an ideal choice for the construction of energy-efficient opening frames under the Exoikonomo Autonomo programs, as in most cases, coefficients below 2 W/m²K are achieved. The EOS 60 Advanced is the ideal solution for replacing old wooden windows and balcony doors with new energy-efficient opening frames, offering high performance in both thermal and sound insulation.
